150A 10K JIS B2031 cast iron ball valve

Product Categories

HEBEI PAWOFUOU VALVE AND PIPE FITTING TECHNOLOGY CO.,LTD.

Contact Now

Name: 150A 10K JIS B2031 cast iron ball valve
Brand: PVPT
Price: 1 USD

Brand Name : PVPT

Place of Origin : China

MOQ : 10 pcs

Price : EXW FOB CFR CIF

Payment Terms : L/C, T/T, Western Union

Delivery Time : 30 days after receiving the down payment

Packaging Details : wooden case, pallet or as per customer request

Pressure : 10K

Design standard : JIS B2031

Size : 150A

Contact Now

150A 10K JIS B2031 cast iron ball valve

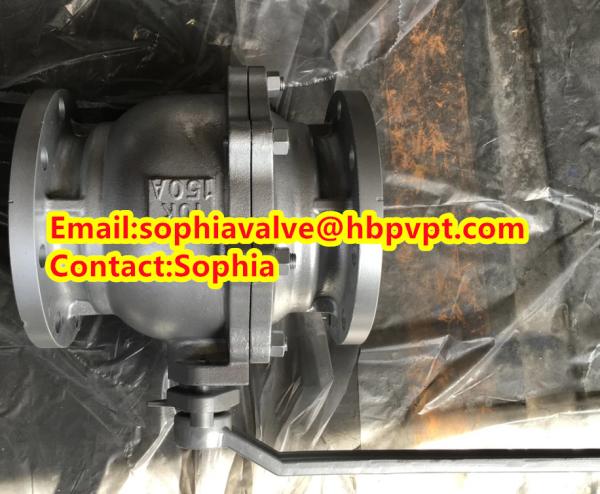

Product show

150A 10K JIS B2031 cast iron ball valve

Specifications

1.Production Size:1/2"~10".DN15~DN250

2.Pressure:10K

Standard

1.Design Standard:JIS B2031

2.Face to Face:JIS B2002 DN15-DN100(6) DN125-DN200(39)

3.Flange Standard:JIS B2212

4.Testing Standard:JIS B2003

Main material of parts:

1.Body:FC200/FCD-S

2.Bonnet:FC200/FCD-S

3.Stem:2Cr13/SUS304/SUS316/Carbon Steel

4.Ball:SUS304,SUS316

5.Gasket:PTFE

6.Seat:PTFE,RPTFE

7.Stem Packing:PTFE

8.Handle:FCD450
